Technical Specifications

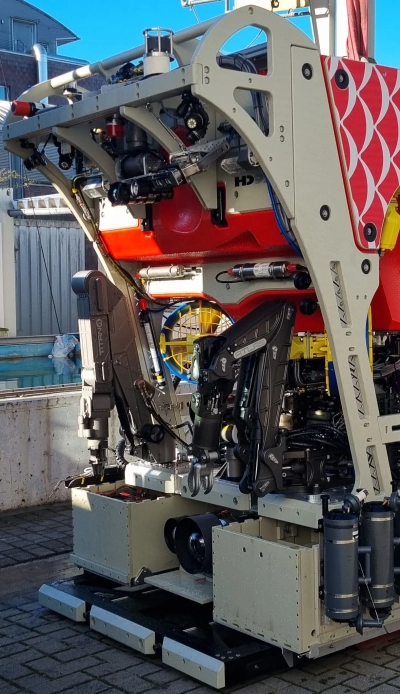

Vehicle type: "HD" Heavy Duty Hydraulic Workclass ROV
Manufacturer: TechnipFMC Schilling Robotics, Davis, CA, USA
Operation depth: max. 5000 m
Operational mode: "free fly", single body, with umbilical direct to ROV
Weight: 4300 kg
Dimensions: L x W x H 3,3 x 1,9 x 3 m incl. toolskid
Modular science toolskid: 3,3 x 1,9 x 0,6 m, 1-3 hydraul. drawer platforms for science installations
Max. payload: max 300 kg (depends on toolskid configuration)
Through Frame Lift (TFL) capacity: 15oo kg

HPU Electric motor: 120 kW @ 4160 VAC, 1740 rpm @ 60Hz (less @ 50Hz)
Hydraulic power:
main pump 217 lpm @ 207 bar (57.5 gpm @ 3000psi)
aux pump 117 lpm @ 207 bar (31 gpm @ 3000 psi)
Propulsion: 7x Subatlantic SA 380 proprtional hydraulic trhrusters
Hydraulic valvepacks:
1x Schilling 8-ST hydraulic Valvepack, each valve 8 lpm proportional, rapid change
1x Schilling 9-ST hydraulic Valvepack with 8, 32 and 160 lpm proportional valves, rapid change
Available free ports depend on system configuration.

Standard hydraulic tooling:
1x Schilling Titan 4 7-function proportional manipulator, starboard side
1x Schilling Atlas 7-function manipulator, port side
1x extendable single drawer platform on toolskid, with 3 rapid-change compartments

Electrical Instrument Power Distribution (IPDS):
1x 5kVA > 2x 2.5 kVA @120VAC Transformer
3x 26VDC @ 17A power for DTS Telemetry System
1x 48 VDC @ 8A output
4x 120VAC @ 250W to 2400W output

DTS Digital Telemetry System: Composite Video, RS232 / RS485 max 115 kBaud, Ethernet 10/100 MBit, 48 Schilling Seanet ports total. Available free ports depend on system configuration.

CWDM Telemetry: 4x 10 GBit/s (Ethernet + 4k/6k Video) + 1 channel for further wavelength multiplexing

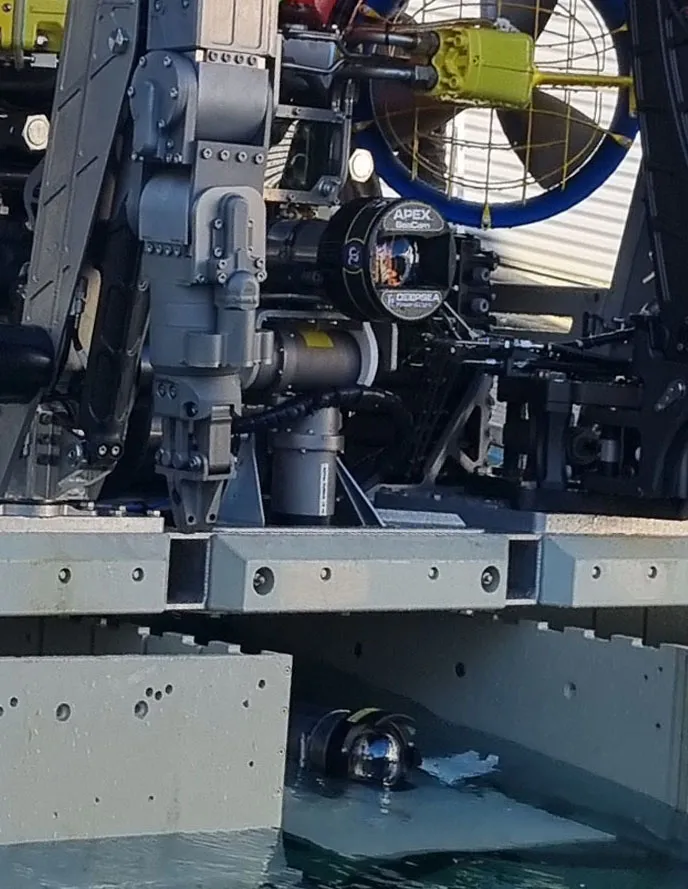

4k Cameras:
1x DSPL APEX 4k color zoom (FO), mounted on lower PanTilt, proportional
1x Insite Pacifc MiniZeus 4k color zoom (FO), mounted on toolskid PanTilt, proportional
(1x modified Insite Pacific Zeus+ 4k broadcast quality, currently under revision)

HDTV Cameras:
1x Insite Pacific MicroZeus HD or MiniZeus HD, mounted on upper PanTilt, proportional
1x h264 network color zoom with low latency, MARUM development, with internal PanTilt, rear view
1x h264 network 3D Stereo fixed optics camera, IFREMER/MARUM development (Eurofleets)

SD (PAL) Video Cameras:
1x SD DSPL Wide-I fixed optics on light porch, front overview
1x SD DSPL LED MSC fixed optics on toolskid, vertical downward view
1x SD DSPL MSC fixed optics on light porch, umbilical view
1x SD Schilling T4 Manipulator fixed optics wrist camera

Stills/Foto cameras:
1x VOYIS Observer 20 MP fixed optics camera system with LED flashes, on toolskid, vertical downward view
1x 20MP color zoom stills camera, MARUM development, mounted on toolskid PanTilt, on request

USBL: iXBLUE Posidonia, iXBLUE GAPS or SONARDYNE Ranger Transponder, each with remote head configuration on ROV, plus remote beacon clamped onto umbilical at 100 m above ROV
Doppler log and Altitude Sensor: Nortec DVL500 or RDI Workhorse 1200
Inertial Sensor: iXBLUE Octans Nano
Depth Sensor: Valeport MiniIPS
Others: 1x Sonardyne ROV-Homer Acustic Beaconfinder
1x Novatech Flasher

Sonar: Imaginex 881A 6km programmable var. frequency scanning sonar

Standard setup:
CTD: 1x Sea and Sun "ASD-CTD60"
High Temperature Probe: MARUM / MPI Temperatur probe 0- >400 Deg °C

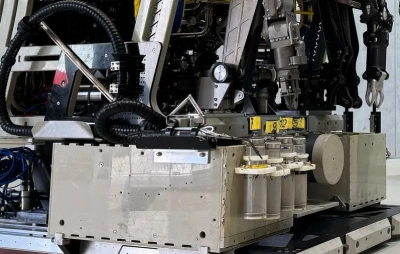

Various sample tools:
2x sample box 580 x 930 x 410 mm (WxLxH), 1x camera sled, variable setup, easy exchangeable
up to 32 pushcores
variety of "Hand"-Tools (nets, scoops etc.)
3x independent hydraulic front drawer platforms

Optional setup:

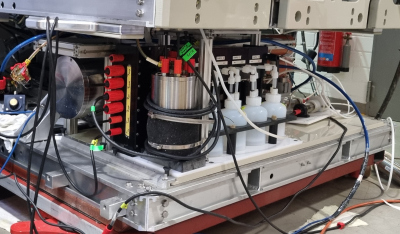

Depending on the scientific planning and involved groups, a variety of tools can be adapted and are maintained by partnering workgroups, including gas samplers, water samplers, T-probes, inductive links, in situ mass spectrometry, fluid samplers, bubble meter, microprobes, diverse autonomous devices and experiments, and more

Requirements for custom payload electrical or hydraulic interfacing, available spaces and payload capacity has to be defined in direct communication prior to or during expedition preparation phase.

Heavy instrument deployment (planned)
TFL capacity of up to 1500kg will allow installation of equipment underneath the ROV or toolskid in near future.
Once available, more details will be listed here.

Unit: 20' High Cube offshore rated ISO Container,
Weight : ca. 10 t
Electrical Power Input:
3 Phase 400V/50Hz, 63A hotel power
3 Phase 400V(480V)/50(60)Hz, 250A, transformed to 4165V/50(60)Hz for ROV power

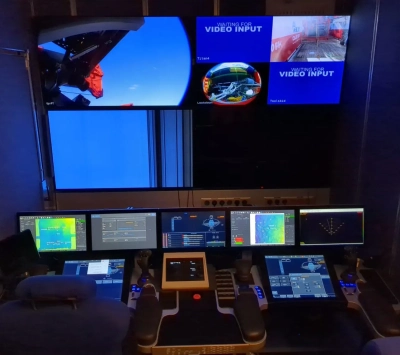

Interior (major components):
2 pilot stations on Schilling HD control console
2 stations on scientific console, 1 scientific "spare" place
4x main subsea video displays, 4k OLED, wall mounted
5x 17' TFT data touch displays for pilots
2x 17' TFT data touch displays for scientists
1x MARUM custom build realtime database with logging interface
1x MARUM custom build navigation software based on QGIS
1x MARUM custom build video tiling, annotation, distribution and recording system
1x MARUM custom build image and data visualisation system based on ROS and other opensource tools

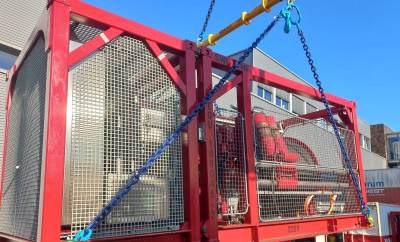

Winch type: custom designed electric SHG umbilical winch
Manufacturer: SHG, Svendborg, Denmark
Weight: 27 t including cable
Dimensions: open frame, standard ISO 20' Container
Design: drum and control section can be separated
Electric power: 3x 400V/50Hz, max 296 Amp
Load rating: SWL 75 kN
Pulling speed: max 70 m/min
Controls: 1x HMI touchscreen with joystick, local
1x wireless radio console, mobile

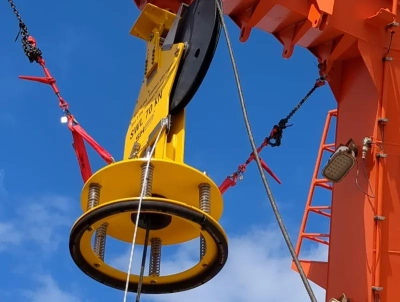

Type: Passive dockinghead (Snubber), to be installed into vessel A-Frame
Manufacturer: SHG, Svendborg, Denmark
Dimensions (without adapter): WxDxH 1663 x 1120 x 2100 (2838) mm
Weight: ca. 1t
Load rating: SWL 70 kN
Internal umbilical sheave: diameter 1000 mm
Latch/Release mechanism: manual release, compatible with IMENCO "Maxi Latch" system

Adapters for installation into A-Frame vary depending on vessel.
